生物质导热油炉

来源：http://www.czrsgl.com/news1165332.html 发布日期：2026-9-1 9:59:00

生物质导热油炉：

Biomass thermal oil furnace:

生物质导热油炉出口应用于生物质燃料丰富的东南亚国家（如越南，泰国，马来西亚，印度尼西亚等国家）各种需要进行高温加热或烘干的各行各业。

The export of biomass thermal oil furnaces is applied to various industries in Southeast Asian countries (such as Vietnam, Thailand, Malaysia, Indonesia, etc.) that are rich in biomass fuel and require high-temperature heating or drying。

生物质导热油炉是以生物质为燃料，导热油为热载体，通过循环泵强制液相循环，将热能输送给用热设备，换热后返回加热炉重新加热的直流式特种工业炉。

A biomass thermal oil furnace is a special industrial furnace that uses biomass as fuel and thermal oil as a heat carrier. It is forced to circulate in the liquid phase through a circulation pump, delivering heat energy to the heating equipment. After heat exchange, it returns to the heating furnace for reheating.

生物质燃料：是指农林废弃物（如：锯木，木屑，树皮、秸秆、甘蔗渣、稻糠，棕榈壳等）

Biomass fuel: refers to agricultural and forestry waste (such as sawdust, sawdust, bark, straw, sugarcane bagasse, rice bran, etc.)

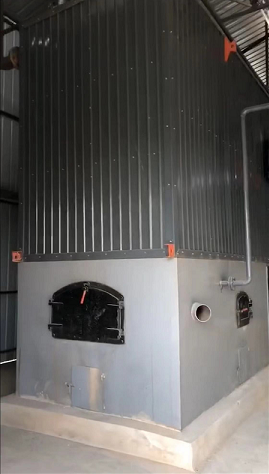

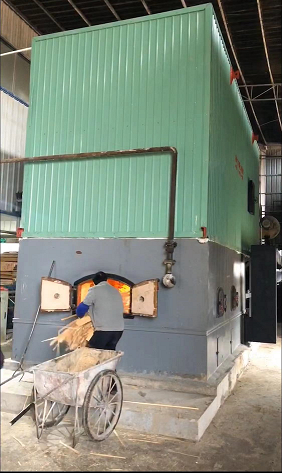

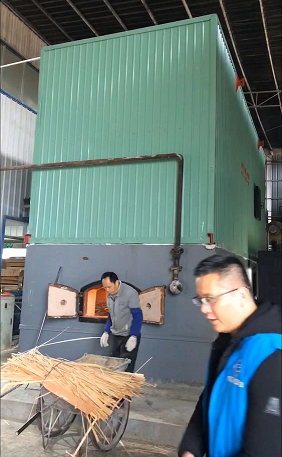

生物质导热油炉由上部本体和下部固定炉排组成，工地现场组合。

The biomass thermal oil furnace is composed of an upper body and a lower fixed grate, and is assembled on site.

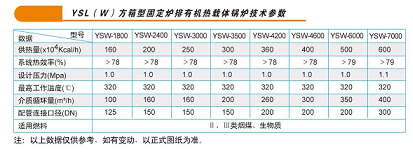

生物质导热油炉产品性能特点及技术参数：

Performance characteristics and technical parameters of biomass thermal oil furnace products:

性能特点：操作简单，使用方便，无故障运行，免维护

Performance characteristics: simple operation, convenient use, fault free operation, maintenance free

工作温度：0～350℃

Working temperature: 0-350 ℃

工作介质：导热油

Working medium: thermal oil

工作压力：常压

Work pressure: atmospheric pressure

设计压力：1MPa

Design pressure: 1MPa

供热能力：120～6000kW(10～500万大卡/时）

Heating capacity: 120-6000 kW (100000 to 5 million kcal/hour)

产品规格：单台供热能力为10、25、40、60、80、100、120、150、200、300、400、500万大卡/时

Product specifications: The heating capacity of a single unit is 10, 25, 40, 60, 80, 100, 120, 150, 200, 300, 4, and 5 million kcal/hour

燃烧方式：多炉门固定燃煤炉排

Combustion method: fixed coal fired grate with multiple furnace doors

适用燃料：锯木，木屑，树皮、秸秆、甘蔗渣、稻糠等

Applicable fuels: sawdust, sawdust, bark, straw, sugarcane bagasse, rice bran, etc

自动控制：机械化半自动控制方式

Automatic control: mechanized semi-automatic control mode

中国常州上能锅炉有限公司是热载体加热炉装备(生物质导热油炉）设计、制造，销售，售后服务为一体的专业公司。

Changzhou Shangneng Boiler Co., Ltd. in China is a professional company that integrates the design, manufacturing, sales, and after-sales service of heat carrier heating furnace equipment (biomass thermal oil furnace).

生物质导热油炉出口应用于生物质燃料丰富的东南亚国家（如越南，泰国，马来西亚，印度尼西亚等国家）各种需要进行高温加热或烘干的各行各业。
